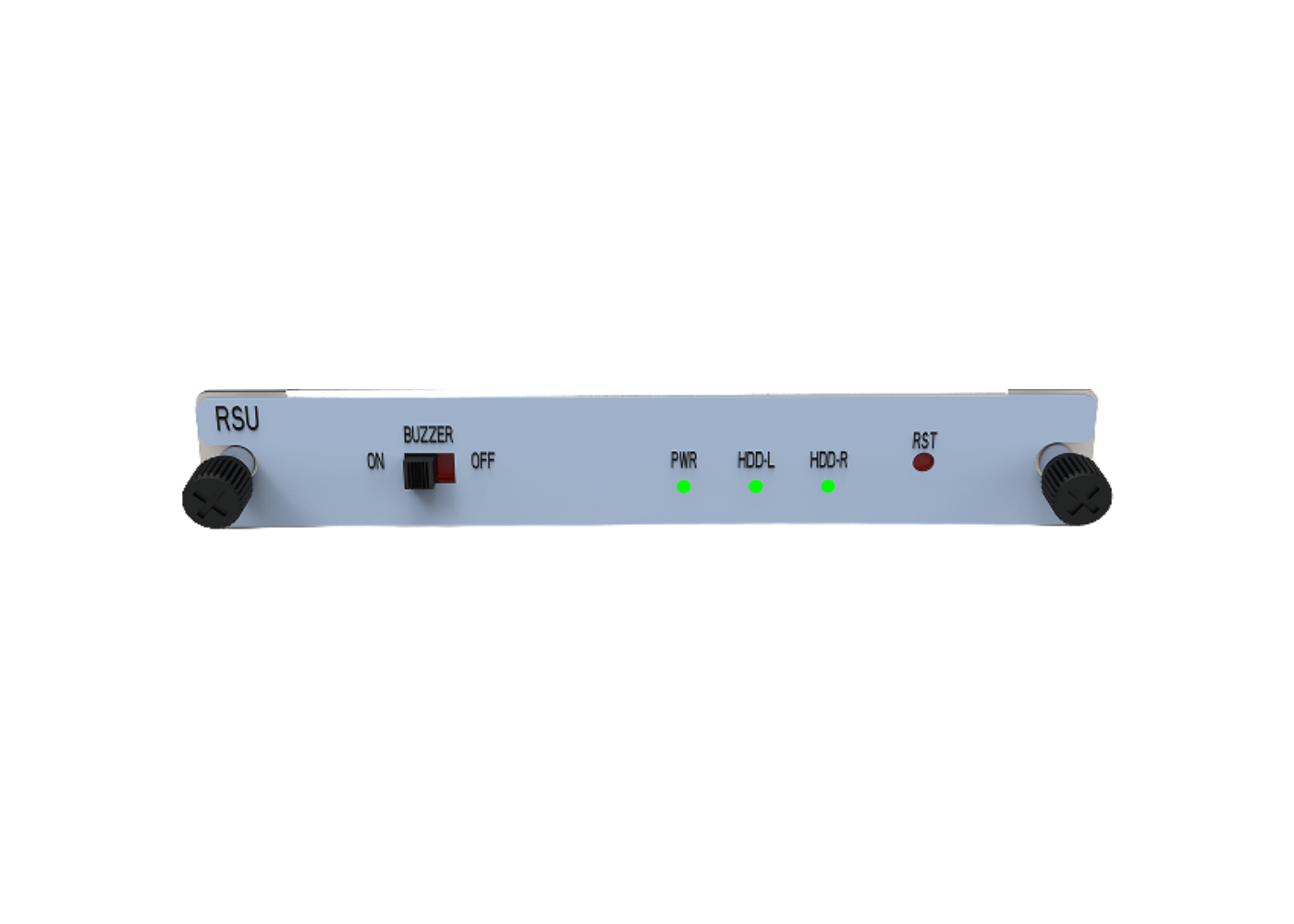

RSU (RAID Storage Unit)
Built around the ASM1062R controller;
Provides a PCle 2.0 X1 interface and two 6 Gbps SATA ports.
Request a Quote
-
Specifications
The RSU RAID module is built around the ASM1062R controller. It provides a PCIe 2.0 x1 interface and two 6 Gbps SATA ports.
Operating Mode / Mode Switching
- Supported mode: RAID 1 (disk mirroring with real-time redundancy)
- Mode selection: via jumper
-Position 0: AHCI Clear Mode (used to delete an existing RAID).
-Position 1: RAID 1 Mode (normal operation)
-
