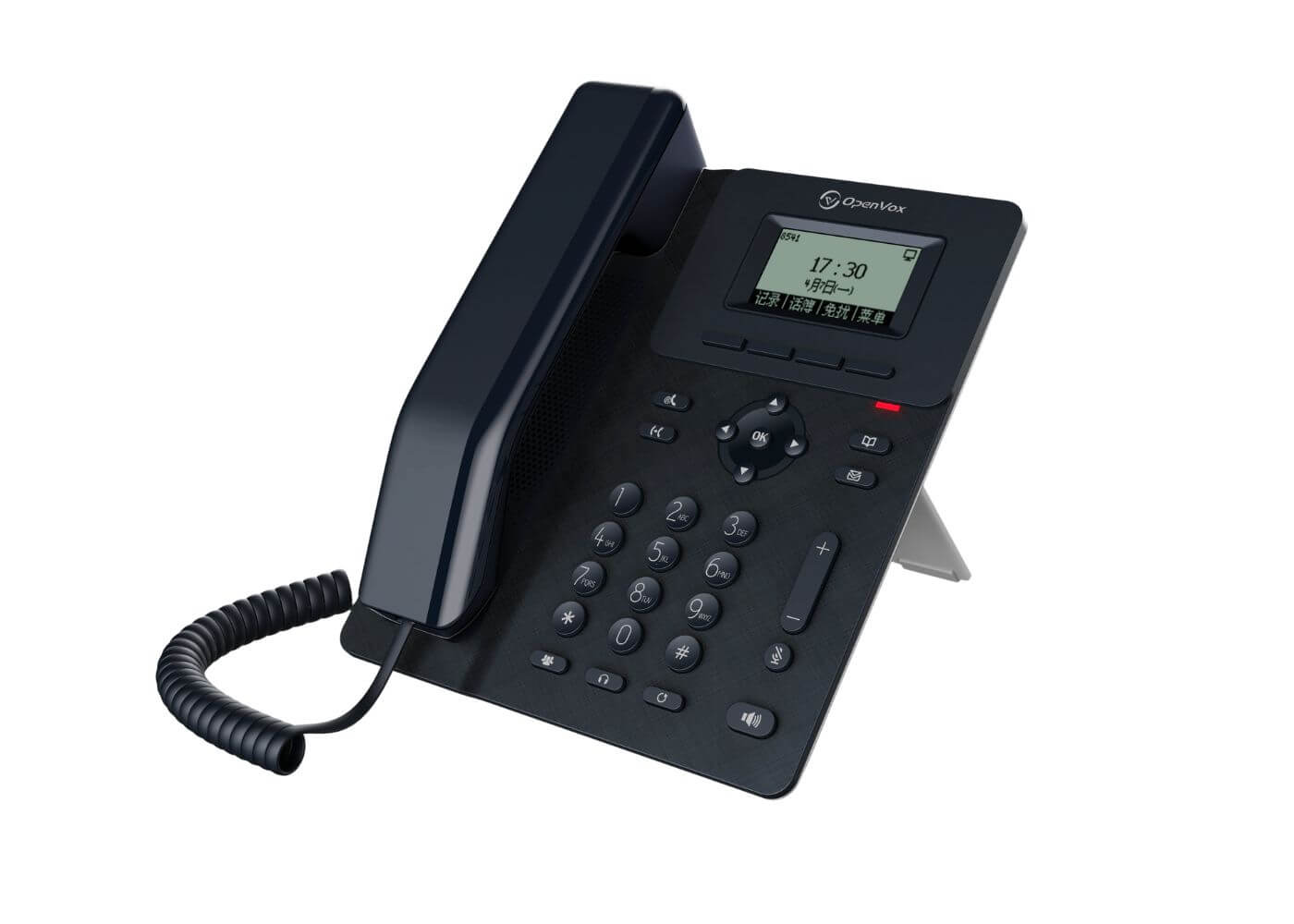

C220

Genric

• 2.3-inch 132x64 pixel dot-matrix screen (No backlight)
• 2 SIP lines
• HD voice
• PoE enabled
• Handset / hands-free / headset mode
• Desktop Stand / Wall-mounted (optional)
• Optional external power supply
• Handset with Hall-effect Sensor Switch

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP)
• Call logs (In/Out/Missed, 1000 entries)
• Blocked List/Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset
• Support Recording (Through Server)
• Action URL / Active URI
• XML Browser
• uaCSTA
• Customize Incoming Call Ringtone
• Customize boot logo
• Time Plan (timed reboot/timed forward/timed upgrade/timed config)
• Hidden DTMF
• Ring From Headset

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID/Ban Anonymous call)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Call Back
• Predial
• Do-Not-Disturb(DND)/Timed DND
• Auto-Answering
• SIP SMS
• Voice Message (On server)
• 6-way Audio Conference
• Hot Line
• Hot Desking
• Direct IP call without SIP proxy
• Fuzzy Search Call
• Action Plan
• Dial Plan
• Call Completion/Auto Redial
• Primary and Backup SIP Servers
• Default Ext Line
• Multicast

Audio

• HD Voice: HD handset, HD speaker
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726, G.729,G.729A,G.729B,G.729AB, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Network

• Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• DNS-SRV (RFC 3263)
• Support Redundant Servers
• Agent
• https Mutual Authentication

Protocols

• SIP v1 (RFC2543) v2(RFC3261)UDP/TCP/TLS
• RTP/RTCP/SRTP(Optional/Compulsory)
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• 802.1p/Q
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Maintanance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Screenshot
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog
• Network Firewall
• Online Upgrade

Physical Specifications

1. LCD: 132x64 pixel dot-matrix screen
2. Keypad: 32 keys, including:
       8 Function keys (Hold/Transfer/Voice message/Conference/Phonebook/Headset/Redial/Hands-free)
       4 Soft-keys
       4 Navigation keys
       1 OK key
       12 Standard Phone Digits keys
       3 Volume Control keys(Up/Down/Mute(Microphone))
3. HD Handset (RJ9) x1
4. Handset with Hall Switch
5. Standard RJ9 Handset Cord x1
6. 1.5M CAT5.E Ethernet Cable x1
7. Desk Stand x1
8. Status Indicator Light x1 (Red)
9. RJ9 Port x2: Handset x1, Headset x1
10. RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
11. Security Slot x1
12. Power: DC5V / 1A or PoE
        POE complies with the IEEE 802.3af standard
        Power adapter (optional): Input:100-240VAC~50/60Hz; Output:5V/1A
13. Working Temperature: 0~45℃
14. Working Humidity: 10~95%
15. Installation:
        Desktop Stand
        Wall mountable (optional)
16. Color: Black
17. Device Dimensions:
        Desktop Stand (40°): 178x190.98x170.89 mm
        Desktop Stand (45°): 178x179.7x178.74 mm
18. Wall mountable: 178x101.89x215.94 mm
19. Gift Box Dimensions: 250x220x55mm
20. Outer CTN Dimensions: 460x300x270mm (10 PCS)
