A2410 Series

Delivers the superior voice quality on both FXO and FXS interfaces in all 24 ports;

Contains 6 module banks;

Each bank supports one analog interface.

Request a Quote

  • Specifications

    OpenVox A(E)2410 Series is a new analog card. It can be used for connecting analog telephones and analog POTS lines through a PC. It deliver the superior voice quality on both FXO and FXS interfaces in all 24 ports and OpenVox A(E)2410 Series takes full advantage of Octasic® Hardware Echo Cancellation Module.

    A(E)2410 Series is a new generation analog card with interchangeable quad-FXS and quad-FXO modules. It can eliminate the requirement for separate channel banks or access gateways.

    The A(E)2410 Series contains 6 module banks. Each bank supports one analog interface. The module banks may be filled with up to 6 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

    A(E)2410 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

    Target Applications

    • Channel Bank Replacement / Alternative
    • Small Office Home Office (SOHO) applications
    • Small and Medium Business (SMB) applications
    • Gateway Termination to analog telephones/lines

    Technical Specifications

    • Up to 24 ports through a combination of FXS400 and FXO400 modules
    • Full-length analog card
    • Up to 6 quad FXS or FXO modules
    • RJ45 connector
    • FPGA design, upgradeable firmware onsite

    Minimum Hardware Requirement

    • 800-Mhz Pentium III
    • 128MB RAM

    Operating Systems

    • Linux (all versions, releases and distributions from 1.0 up)

    Optional Octasic® DSP Echo Cancellation Module — EC2032

    • 1024 taps/128 ms tail/channel (on all channel densities)
    • Octasic® music protection
    • Automatic level control (G.169)
    • Field upgradeable algorithm
    • V.25 / V.8 answer toneDTMF as per Q.24
    • No CPU load as a result of echo cancellation.
    • Does not increase the physical size of the card, and no additional slot is required
    • EC2032 (SMEC V1.1) power consumption: 3.83W



    A2410 Series Analog Cards

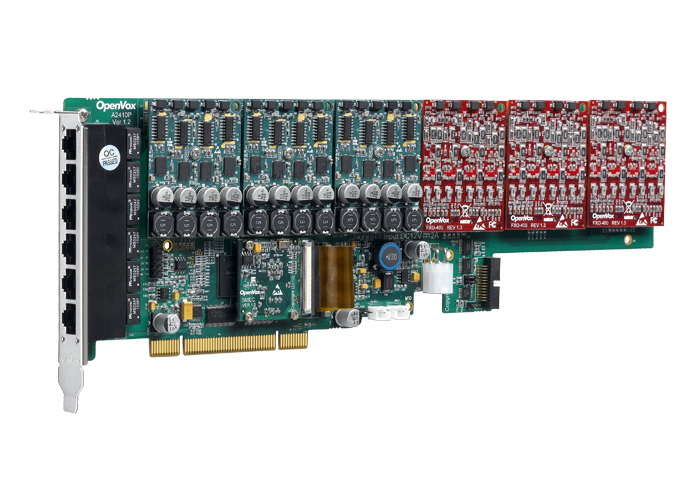

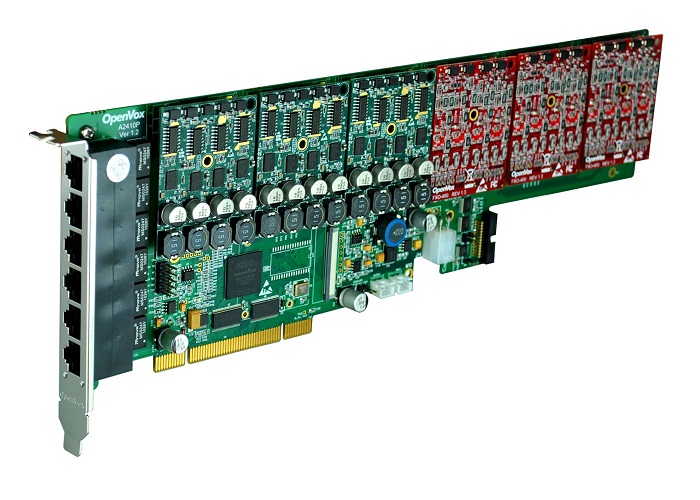

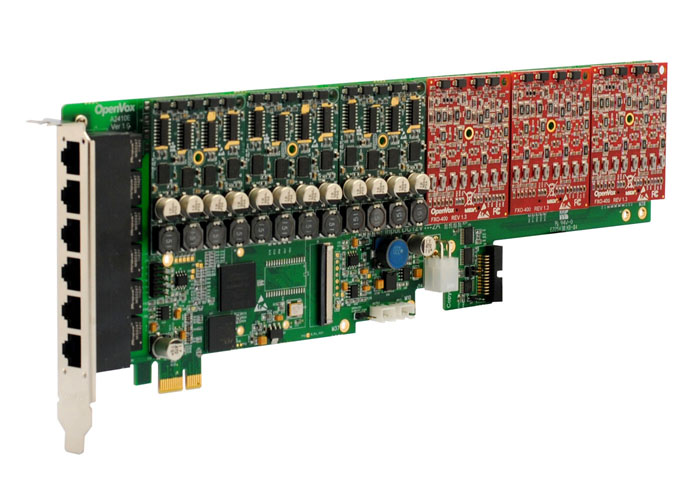

      Product Model   A2410E   AE2410E   A2410P   AE2410P
    Power Consumption 8.21W Minimum, 88.24W Maximum 8.21W Minimum, 88.24W Maximum at 3.3 V or 5 V
    Operation temperature 0°C to 50°C
    Storage temperature -40°C to 125°C
    Dimension 312mm*106.7mm*18mm
    Weight 155g 165g 155g 175g
    Interface PCI-E PCI

  • Features

    • Up to 24 ports through a combination of FXS400 and FXO400 modules
    • Up to 6 quad FXS or FXO modules
    • RJ45 connector
    • FPGA design, upgradeable firmware onsite
    • Caller ID and Call Waiting Caller ID
    • ADSI Telephones
    • Loopstart Signaling Support
    • Adjustable Interrupt Routing Design
    • Interrupts frequency adjustment
    • Up to 24 Simultaneous PSTN Calls (Per PCIe Slot)
    • Compatible with All Commercially Available Motherboards
    • Octasic® Hardware Echo Cancellation Module Available
    • 3-Month "No Questions Asked" Return Policy
    • Lifetime Warranty
