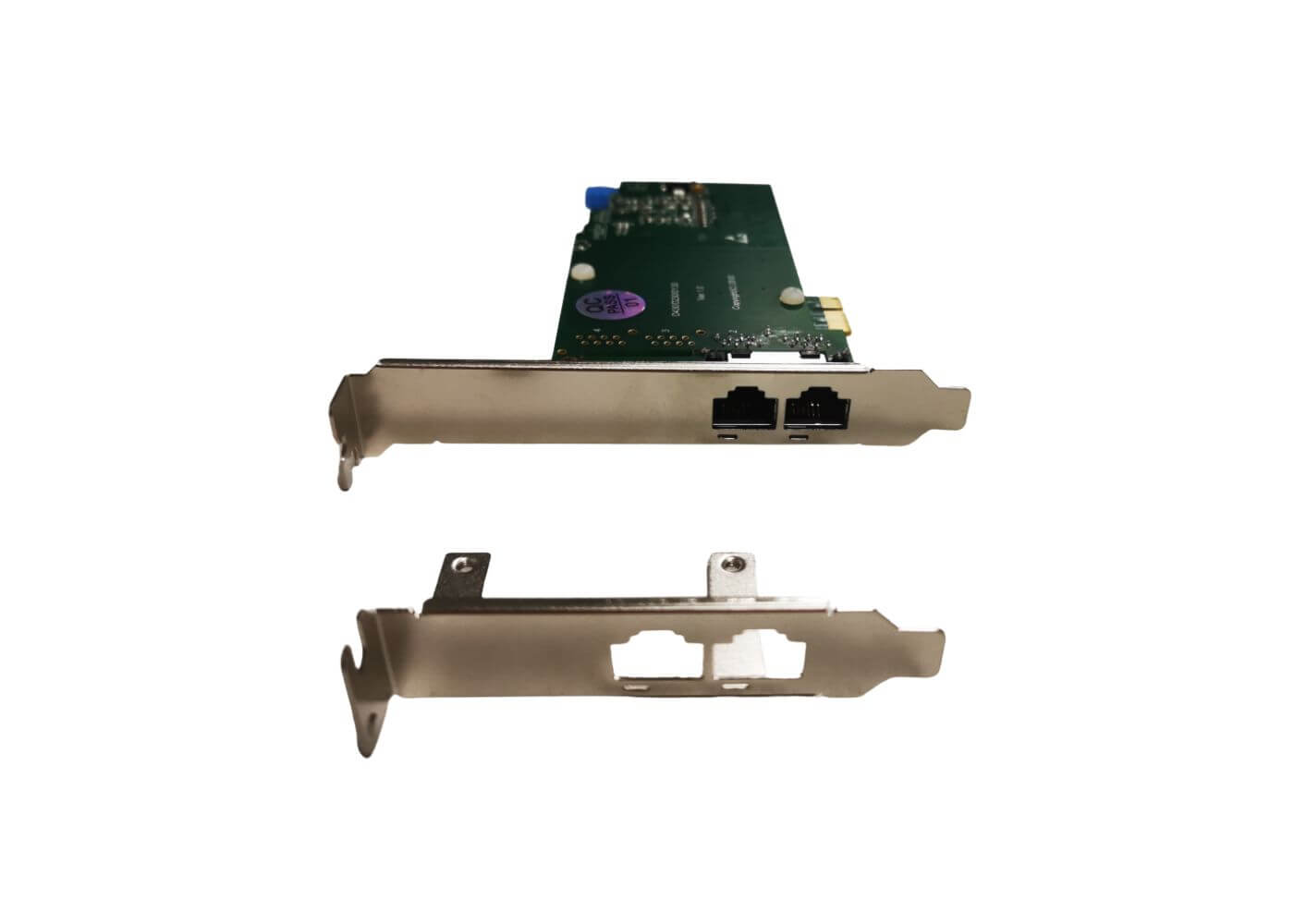

D230 Series

2 T1/E1/J1 ports;

Up to 64 channels in E1 mode or 48 channels in T1/J1 modes;

Support protocols PRI, SS7, R2;

Lifetime warranty!

Request a Quote

  • Specifications

    OpenVox D230 Series is now the leading 2 port T1/E1/J1 PCI-E card in the open source industry. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.

    D230 Series is the most advanced 2 port T1/E1/J1 asterisk® card with superior quality in the open source community.  It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis.The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

    D230 Series offers an on-board Octasic® DSP-based echo cancellation module. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 64 channels in E1 mode or 48 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.

    D230 Series supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

    D230 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

    Target Applications

    • Voice-over Internet Protocol (VoIP) Services
    • Complex IVR Trees
    • "Meet-Me" Bridge Conferencing
    • Calling Card Platforms
    • VoIP Gateways (support SIP, H.323, and IAX)
    • Legacy PBX/IVR Services
    • Voice/Data Router (replace expensive routers)
    • PRI/Switch Compatibility - Network or CPE

    Minimum Hardware Requirement

    • 800-Mhz Pentium III
    • 128MB RAM

    Operating Systems

    • Linux (all versions, releases and distributions f rom 1.0 up)

    Technical Specifications

    • 2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
    • RJ48 connector
    • FPGA design, upgradeable firmware onsite
    • Power Consumption: 2.3W Minimum, 3.5W Maximum at 3.3 V or 5 V.
    • Operation temperature: 0°C to 50°C
    • Dimension: 2U Form factor: 12*6.4*1.8cm

    Optional Octasic® DSP Echo Cancellation Module—EC2064

    • 128ms tail/channel (on all channel densities)
    • Octasic® Music Protection
    • Adaptive Noise Reduction
    • Automatic Level Control (G.169)
    • Field upgradeable algorithm
    • V.25 / V.8 answer tone (w/ and w/o phase reversal)
    • DTMF as per Q.24
    • No CPU load as a result of echo cancellation.
    • Does not increase the physical size of the card, and no additional slot is required
    • EC2064 power consumption: 0.33W/3.5W
    • Storage temperature: -40°C to 75°C

    PRI Switch Compatibility

    • EuroISDN (PRI or PRA) - Q.931/Q.921
    • Network or CPE
    • AT&T 4ESS
    • National ISDN 2
    • CAS Voice Modes
    • DMS 100
    • Lucent 5E











    D230 Series Digital Cards
      Product Model   D230E   D230P   DE230E   DE230P
    Storage temperature -65~125°C -40~75°C
    Weight 90g 92g 95g 94g
    EC module no
    		 yes
    Interface PCI-E PCI PCI-E PCI

  • Features

    • Industry 1st adjustable interrupt routing design
    • Interrupts frequency adjustment
    • Compatible with All Commercially Available Motherboards
    • 2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
    • Octasic® Hardware Echo Cancellation Module Available
    • 3-Month “No Questions Asked” Return Policy
    • Lifetime warranty
