D130 Series
1 T1/E1/J1 ports;
Up to 32 channels in E1 mode or 24 channels in T1/J1 modes;
Support protocols PRI, SS7, R2;
Lifetime warranty!
Request a Quote-
Specifications
OpenVox D130 Series is now the leading single port T1/E1/J1 PCI-E card in the open source industry. It supports up to 32 channels in E1 mode or 24 channels in T1/J1 modes. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality over T1, E1, and J1 interface.
The D130 Series is the most advanced single port T1/E1/J1 asterisk® card with superior quality in the open source community. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.
DE130 Series offers an on-board Octasic® DSP-based echo cancellation module. The Octasic® DSP-based EC module enables users to eliminate echo tails up to 128ms or 1024 taps across all 32 channels in E1 mode or 24 channels in T1/J1 modes. Further, this module takes advantage of the Octasic® Voice Quality Enhancement to provide superior sound quality on all calls.
D130 Series supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.
D130 Series works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.
Target Applications
- Voice-over Internet Protocol (VoIP) Services
- Complex IVR Trees
- "Meet-Me" Bridge Conferencing
- Calling Card Platforms
- VoIP Gateways (support SIP, H.323, and IAX)
- Legacy PBX/IVR Services
- Voice/Data Router (replace expensive routers)
- PRI/Switch Compatibility - Network or CPE
Optional Octasic® DSP Echo Cancellation Module--EC2032
- 128ms tail/channel (on all channel densities)
- Octasic® Music Protection
- Adaptive Noise Reduction
- Automatic Level Control (G.169)
- Field upgradeable algorithm
- V.25 / V.8 answer tone (w/ and w/o phase reversal)
- DTMF as per Q.24
- No CPU load as a result of echo cancellation.
- Does not increase the physical size of the card, and no additional slot is required
- EC2032 power consumption: 3.83W
- Storage temperature: -40°C to 75°C
Operating Systems
- Linux (all versions, releases and distributions from 1.0 up)
Technical Specifications
- Single T1/E1/J1 ports with PCI interface for high performance voice and data applications
- RJ48 connector

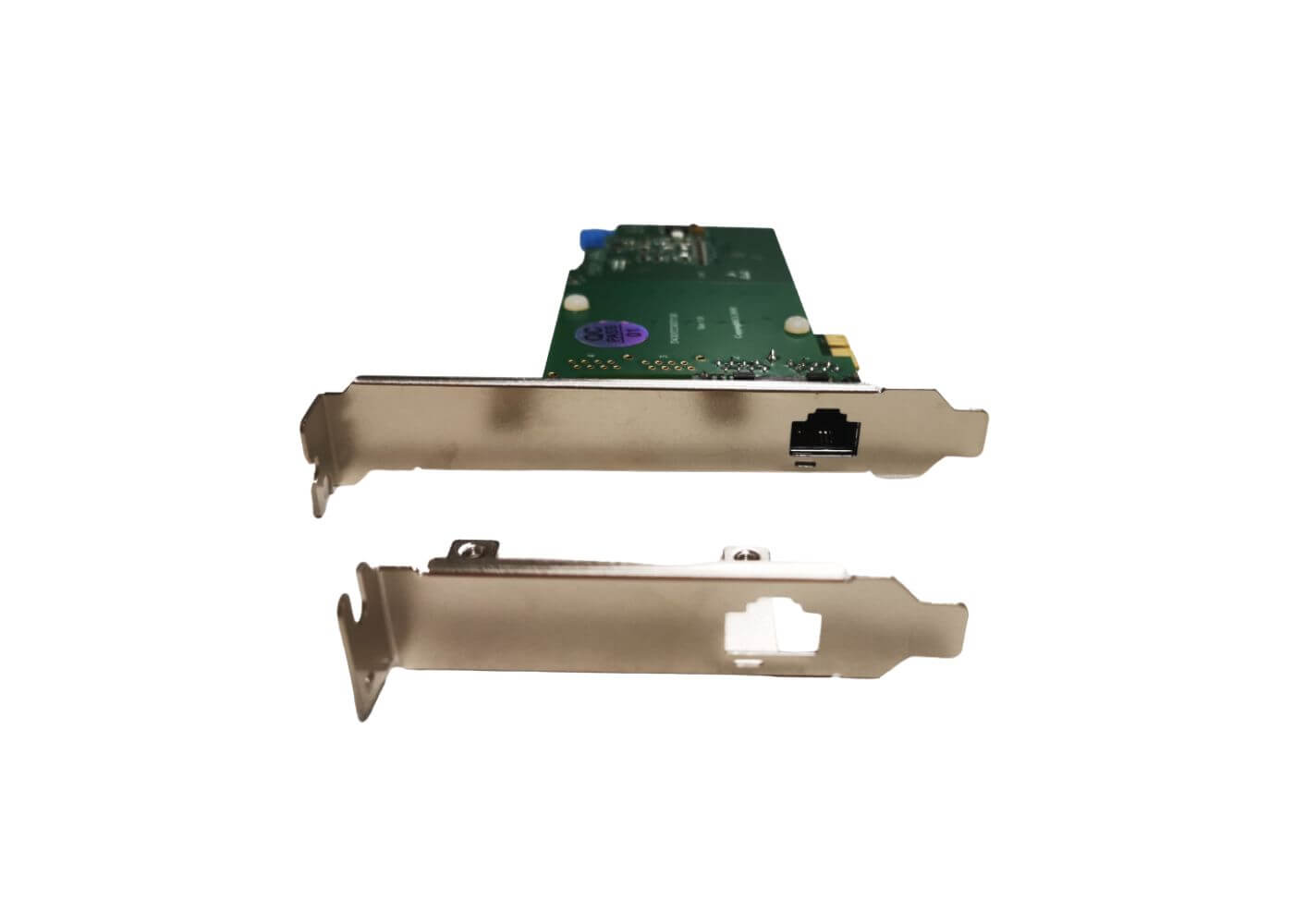

- Low profile option
- FPGA design, upgradeable firmware onsite
Minimum Hardware Requirement
- 800-Mhz Pentium III
- 128MB RAM
PRI Switch Compatibility
- EuroISDN (PRI or PRA) - Q.931/Q.921
- Network or CPE
- AT&T 4ESS
- National ISDN 2
- CAS Voice Modes
- DMS 100
- Lucent 5E
D130 Series Digital Cards Product Model D130E DE130E D130P DE130P Power Consumption 2.1W Minimum, 3.1W Maximum at 3.3 V or 5 V. 2.43W Minimum, 6.1W Maximum 2.1W Minimum, 3.1W Maximum at 3.3 V or 5 V. 2.43W Minimum, 6.1W Maximum at 3.3 V or 5 V. Operation temperature 0°C to 50°C Storage temperature -65°C to 125°C Dimension 120mm*64mm*18mm Weight 88g 93g 90g 92g Interface PCI-E PCI-E PCI PCI -
Features
- Industry 1st adjustable interrupt routing design
- Interrupts frequency adjustment
- Compatible with All Commercially Available Motherboards
- Octasic® Hardware Echo Cancellation Module Available
- Single T1/E1/J1 ports with PCI interface for high performance voice and data applications
- 3-Month "No Questions Asked" Return Policy
- Lifetime warranty
