OpenVox UC200 IPPBX

Designed for SME and SOHO users;

Compact and lightweight;

Provides FXS, FXO interface;

Support up to 30 concurrent calls;

Features fast installation, easy deployment, and high reliability;

Request a Quote

  • Specifications

    OpenVox UC200 Series IPPBX is a new generation Unified Communication terminal equipment designed for SME and SOHO users.

    It is compact and lightweight, and provides following voice interfaces: FXS, FXO interface. It integrates functions such as IP telephony, voice and recording.

    UC200 IPPBX also features fast installation, easy deployment, and high reliability, which brings a new experience of mobile office and communication to the enterprise.

    It is compatible with multiple service platforms and terminals and can seamlessly connect to VoIP networks, traditional telephone networks (PSTN) and provide diverse converged communications solutions.

    UC200 Series IPPBX
      Product Model UC200-lite  UC200-2S2O
    		  UC200-4O UC200-4S4O   UC200-8O
      FXS 0 2
    		 0 4 0
      FXO 0 2
    		 4  4 8
    Max SIP Register 200
    Max SIP Trunks 30
    Max Concurrent Calls 30
    Weight 0.55kg
    Power Supply 12V DC, ≥2A
    Maximum Power Consumption 20W
    Dimension（W/D/H） 188X128X25 mm

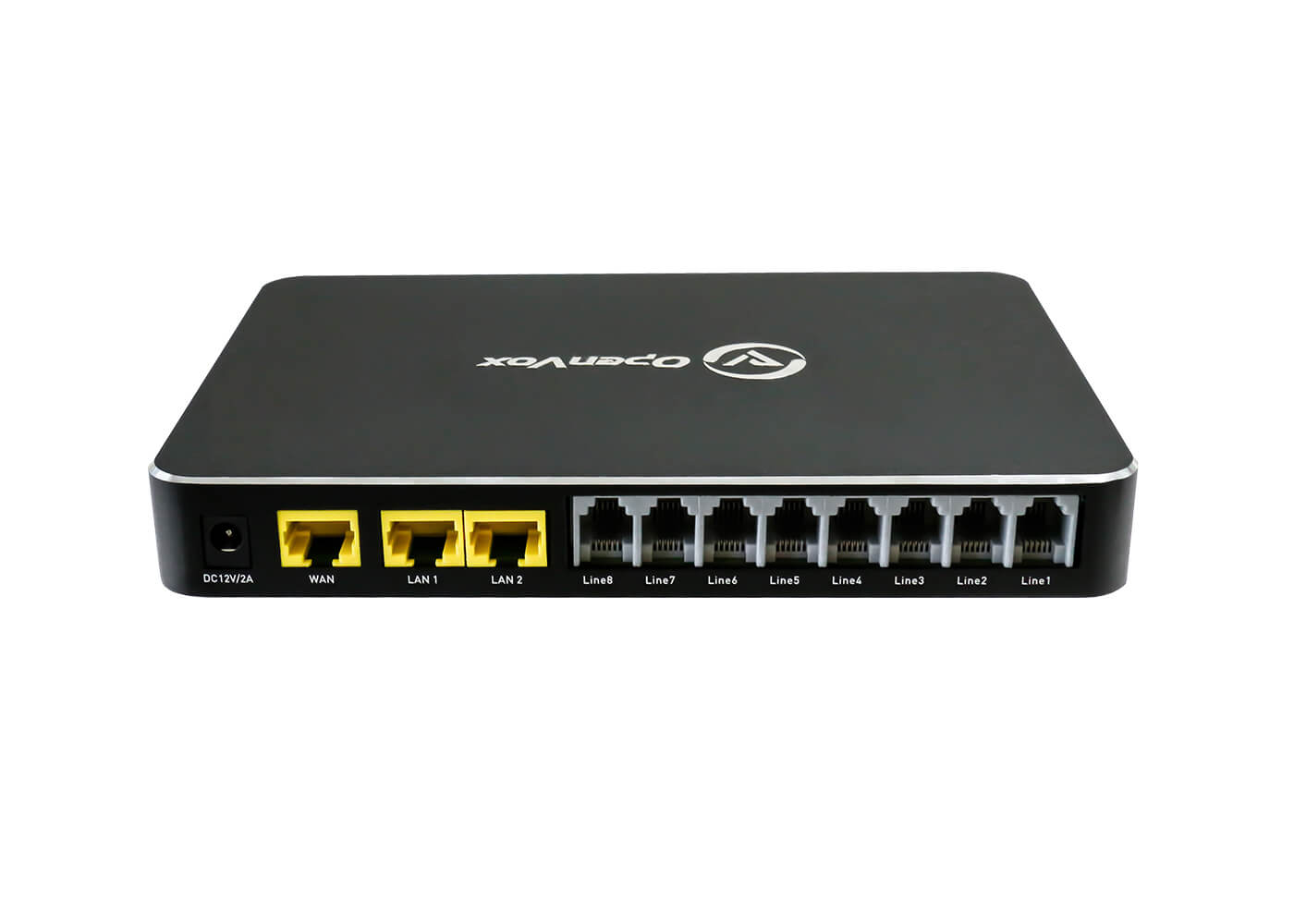

    WAN (WAN Port) 10/100 Base-T RJ45
    LAN (LAN1 Port) 10/100 Base-T RJ45
    LAN (LAN2 Port) 10/100 Base-T RJ45
    Bulit-in Storage 128M

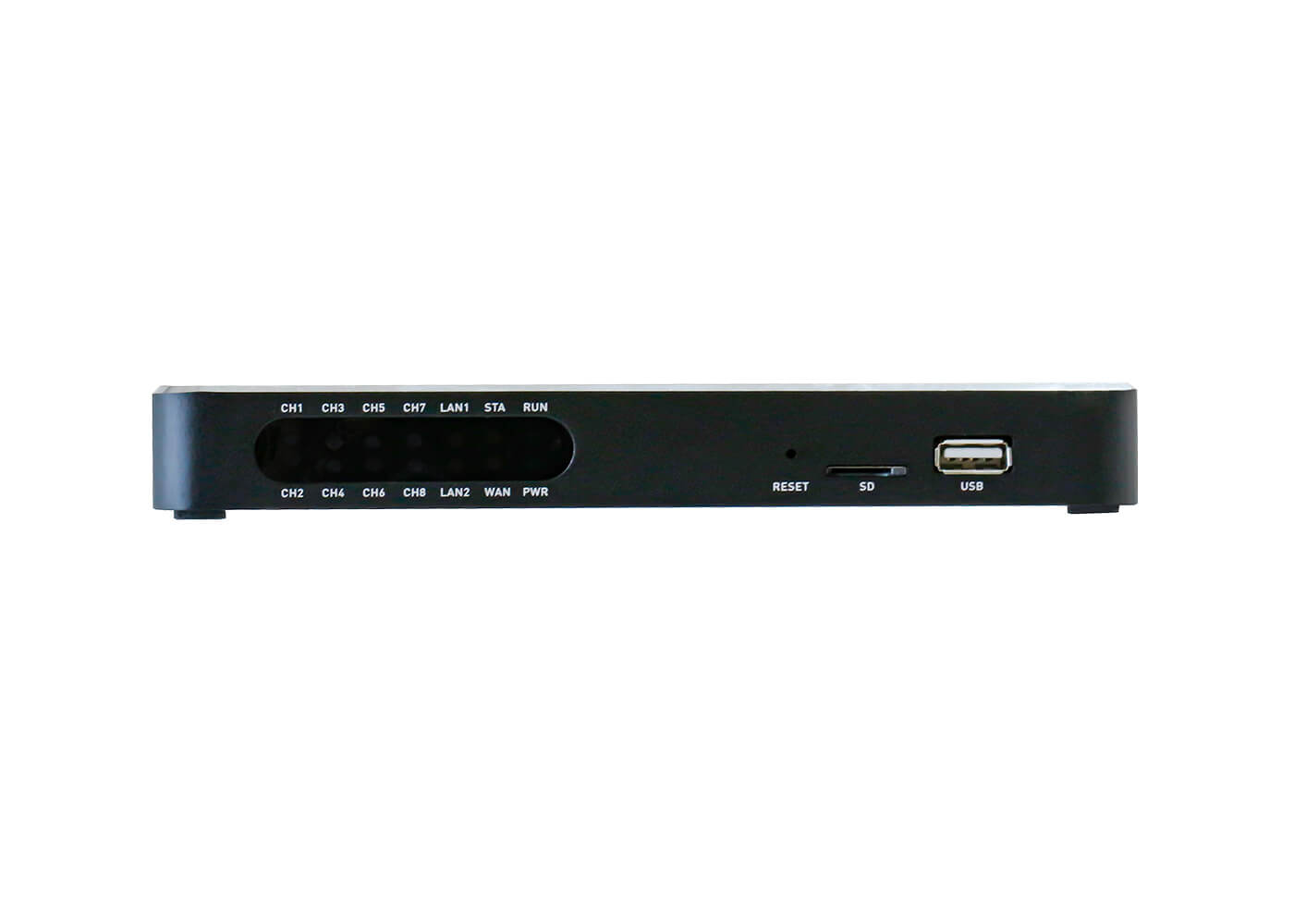

    Micro SD Card Slot  1
    USB Port 1
    Operation Temperature 0℃ ~ 50℃
    Operation Humidity 10% ~ 90% Non-condensing
    Storage Temperature -20℃ ~ 80℃



  • Features

    Physical Specification

    • FXS: Up to 8, flexible selection;
    • FXO: Up to 8, flexible selection;
    • Network Interface: 3 10/100 Base-T RJ45

    FXS

    • Interface Type: RJ11
    • Caller ID Signaling: BELL, V23, V23_JP, DTMF
    • Hang Up Detection: Off-hook, On-hook, Busy Tone
    • Polarity Reverse
    • Hooking Detection
    • FXS Interface High Vlotage Spotlight

    FXO

    • Interface Type: RJ11
    • Caller ID Detection: FSK, DTMF
    • Reversed-Polarity Detection
    • Delayed Response Off-hook
    • Busy Tone Detection
    • No Current Hang-up Detection

    PBX Features

    • Ring Group/Routes Group
    • Calling/Called Number Transform
    •  Call Duration Limitation/Call Failure Rerouting
    • Caller ID Number Acquisition/DID Acquisition
    •  Remote Party ID/Remote Management
    •  P-Asserted-Identity/P-Preferred-Identity
    • Routing based on user privilege level/time condition/caller id number
    • Time Condition
    • Based on Destination Routing/Source Routing
    • Dial Plan
    • Failover Routing
    • FXO Impedance Matching
    • Customizable Multi-language IVR
    • Auto Attendant Function
    • Local CDR Storage
    • SIP forking (multiple SIP device registration with same sip account) / Customized SIP Fields
    • WebPhone (WebRTC)

    Voice Features

    • VoIP Protocols: SIP over UDP/TCP/TLS, SDP, RTP/SRTP
    • Supported Codecs: G.711a/μ law, G.729A, GSM, G.726, G.722, iLBC, OPUS, VP8, H264
    • VPN: N2N and OpenVPN
    • Silence Suppression
    • Comfort Noise Generator (CNG)
    • Voice Activity Detection (VAD)
    • Echo canceller(G.168), Maximum 128ms
    • Adaptive Dynamic Buffering
    • Adjustable Gain Control/Automatic Gain Control
    • AutoCLIP Routing
    • Auto Announcement with outgoing call
    • MQTT API
    • OPUS/VP8 HD Voice/Video Call
    • TOS/QOS support for SIP and RTP
    • Call Proceeding Tone: Dial Tone, Ring-back Tone, Busy Tone
    • Support NAT Traversal
    • Supports HD broadcasting (automatic broadcasting, timed broadcasting)
    • DTMF Mode: RFC2833/Signal/Inband
    • Customized Signal Tones
    • Intra-group Pickup
    • Hotline
    • Do Not Disturb (DND)
    • Tripartite Meeting
    • T38 fax
    • Call Forwarding (Unconditional/No Reply/Busy/Not Reachable)
    • Call Waiting/Holding/Transfer/Queue/Spy
    • Permission Control/Broadcast control
    • Secretary Extension
    • High Avaibility (Hot Standby)
    • Phone Book/Announcement/Morning Call (Wake up)
    • Hotel interface (minibar, alarm, room cleaning, extension privilege setting)
    • PBX License Control

    Management & Maintenance

    • Simple and convenient configuration via Web GUI
    • Support configuration flies backup and upload
    • Support Chinese and English page
    • Firmware Update by HTTP
    • Modify Password via Web
    • CDR Query & Export
    • Syslog Query & Export
    • Ping and Tracer Test
    • Traffic Statistics: TCP, UDP, RTP
    • Network Capture/Network Quality Test
    • Automatic Time synchronization
